OM MACHINE RANGE
For more than 100 years, OM brand of material handling equipment is known for performance, efficiency, safety and reliability. Your standards drive our innovation. Our product range includes Diesel & Electric forklifts, Electric Stackers, Battery operated Pallet Trucks, Tow Truck and Reach Truck. We also have Lithium-ion driven forklifts.
KAT PLUS
Model: DVX 15 / 20 / 30 / 30D KAT Plus
Capacity: 1500 / 2000 / 3000 kg
Extended Mast Height with LBR: 5720 mm
Ground Clearance: Under frame 175 mm
Under Mast 125 mm
Engine: Mahindra 551 DI
HorsePower 49 HP @2100 rpm
Torque 190 Nm @1400 rpm

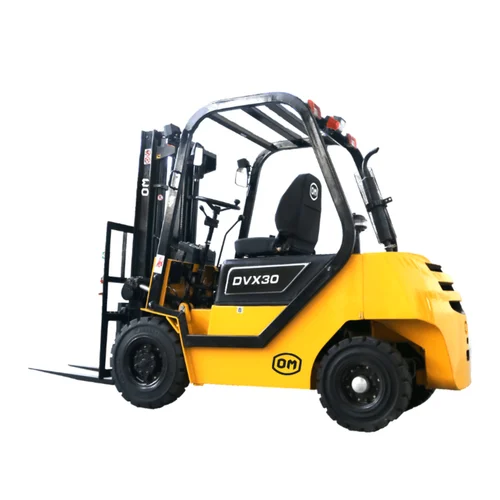

DVX PLUS
Model: DVX FC 15 / 20 / 30 / 30D Plus
Capacity: 1500 / 2000 / 3000 kg
Extended Mast Height with LBR: 5725 mm
Ground Clearance: Under frame 205 mm,
Under Mast 150 mm
Engine: Simpson S433 BSIII
HorsePower: 48 HP @ 2000 rpm
Torque: 196.2 Nm @1400 rpm
EVX 30 PLUS
Model: EVX 30 Plus
Capacity: 3000 kg
Extended Mast Height with LBR: 5735 mm
Ground Clearance: Under frame 120 mm,
Under Mast 120 mm
Drive Motor Rating: 11 KW S2 60 min rating
Lift Motor Rating: 13 KW, S3 15%
Battery: Voltage 80V, Rated Capacity 360Ah
XE30-LI
Model: XE30-LI
Capacity: 3000 kg
Extended Mast Height with LBR: 5545 mm
Ground Clearance: Under frame 168 mm,
Under Mast 139 mm
German Brand Juli Drive Motor Rating: 10.2 KW
German Brand Juli Lift Motor Rating: 11.5 KW
Big Size Battery: Voltage 80V,
Rated Capacity 277 Ah
XS12W
Model: XS12W
Capacity: 1200 kg
Extended Mast Height with LBR: 3600 mm
Drive Motor Rating: 0.65 KW
Lift Motor Rating: 2.2 KW
Gel Battery: Voltage 2x12V
Rated Capacity 105 Ah

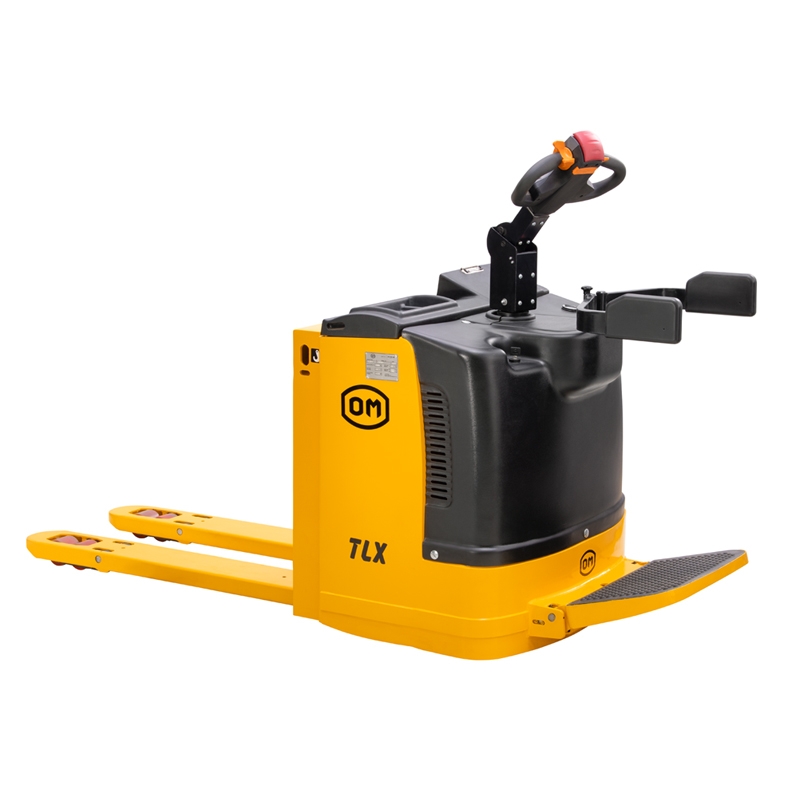

TLX20
Model: TLX20
Capacity: 2000 kg
Lift Height: 135 mm
Drive Motor Rating: 2.2 KW
Lift Motor Rating: 1.2 KW
Battery: Voltage 24V
Rated Capacity 258 Ah
